PM10 is a portable and powerful
PV analyzer for your PV system.
By classifying PV faults based
on the IEC 62446-1 standard,
it ensures efficient and safe operation
of PV power plants.
Powerful tool for PV systems -
Specifications
- Measurable open-circuit voltage (VOC): 15–1500V
- Measurable short-circuit current (ISC): 0.1–30A
- Battery: up to 4 hours
Core Features
- PV system Inspection : Evaluate PV power system efficiency and detect PV faults through I-V characteristic curve-based analysis.
- Scalable Multi-Channel Support: Integrate with PV MULTI for automated measurement and analysis of up to 20 systems.
- Automated Report Generation: Analysis and PV report based on IEC 62446-1 standards.
- Portable and Easy to use: Optimized for field deployment with a lightweight, compact design.
Applications
- PV Plant Maintenance: Powerful tool for safe PV system management.
- Fianl Acceptance Test (FAT) : Verify/Insepct the initial performance of newly installed PV systems.
- Module Reuse and Recycling : The optimized solution for checking the condition of PV modules.
Measurements can be performed safely
Automatically detects potential hazards that may occur during measurement.
IEC-Compliant Automatic Fault Analysis
Consistent Results for All Users
Wide Measurement Range
Up to 1500V / 30A
Automated Measurement Report
On-site measurement and diagnostic report generation are possible.
Single Channel
Multi-Channel
- Intuitive interface (VOC)
- Operating current voltage and Operating current measurement
- Leakage detection
- VOC and Leakage voltage checks

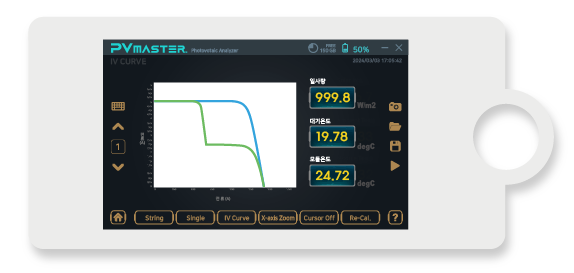

- String-level I-V curve measurement
- Comparative analysis based on a reference I-V curve
- String characteristic values and Output ratios
- Parallel mismatch comparison
- Classification of PV fault type based on IEC standards
- Objective Analysis via Automated Fault Diagnosis
- On-site report generation
- Report format compliant with International standards
